NOW LOADED WITH MORE FEATURES.
Pack all your gear without needing to worry you’re overloaded. The 2.2 is now setup with an even bigger ATM weight. Our new model is rated at 2,200kg meaning that you can now stay out on the road even longer, with added extra bit of peace of mind.

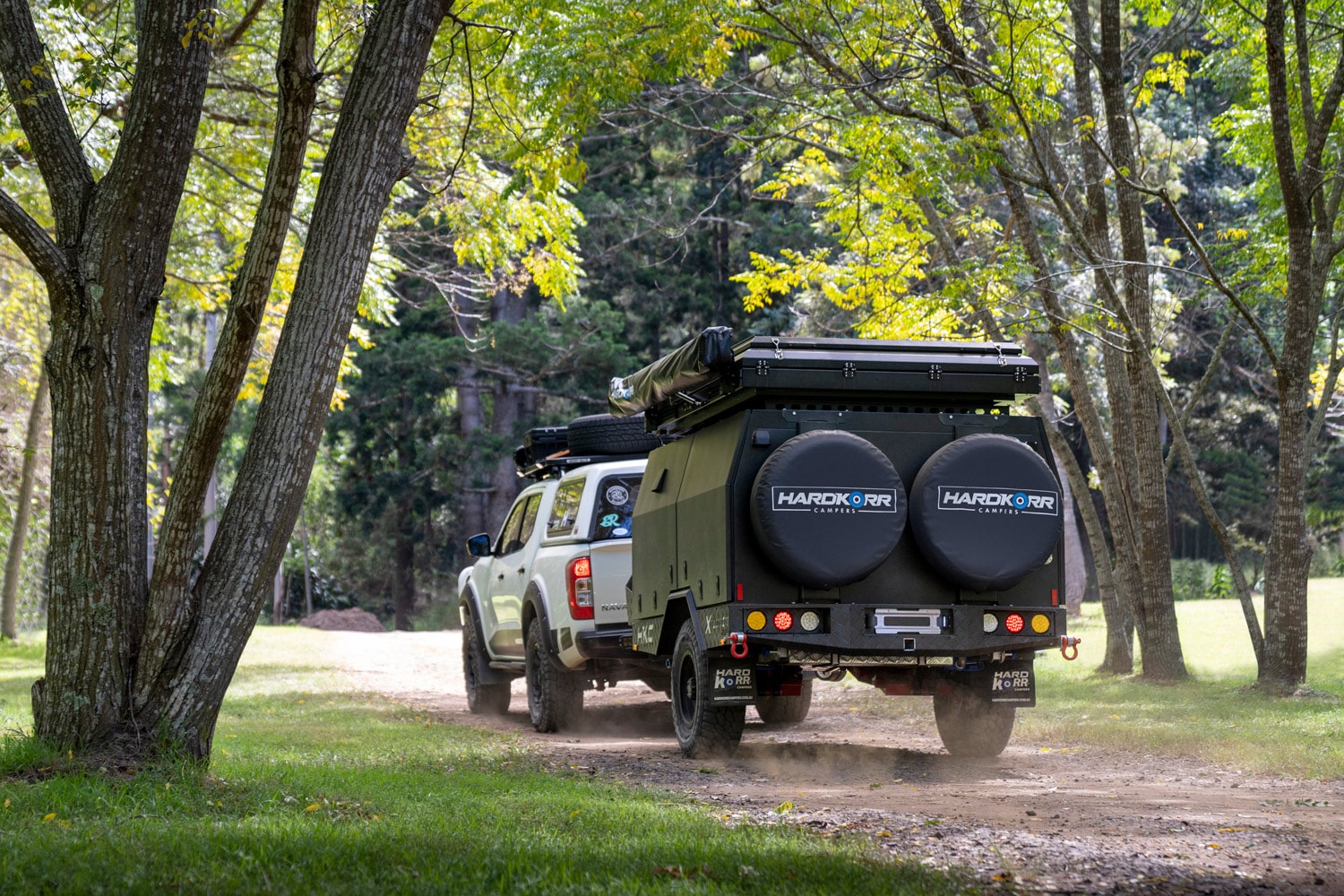

On top of that, it’s now even better to tow. We’ve put in 12” electric brakes and upgraded to our GT spec suspension – a setup we’ve put in trailers that have been to the cape and back. If you’re after a trailer that’ll get you where you want to be, the Xplorer 2.2 is setup to do it.
Those longer stints out bush, or the luxury of having a shower on the road has just become even easier. The water capacity has been upgraded too – there’s now an extra 70L tank meaning you can now travel with up to 170L of water.
Setup with a new internal configuration, the storage spaces are now more intelligently designed so that everything has a space. Inside, we’ve reworked the power compartment, making it easier to use, plus we’ve added more shelves and spaces as standard.
THE GREAT ALL-ROUNDER.

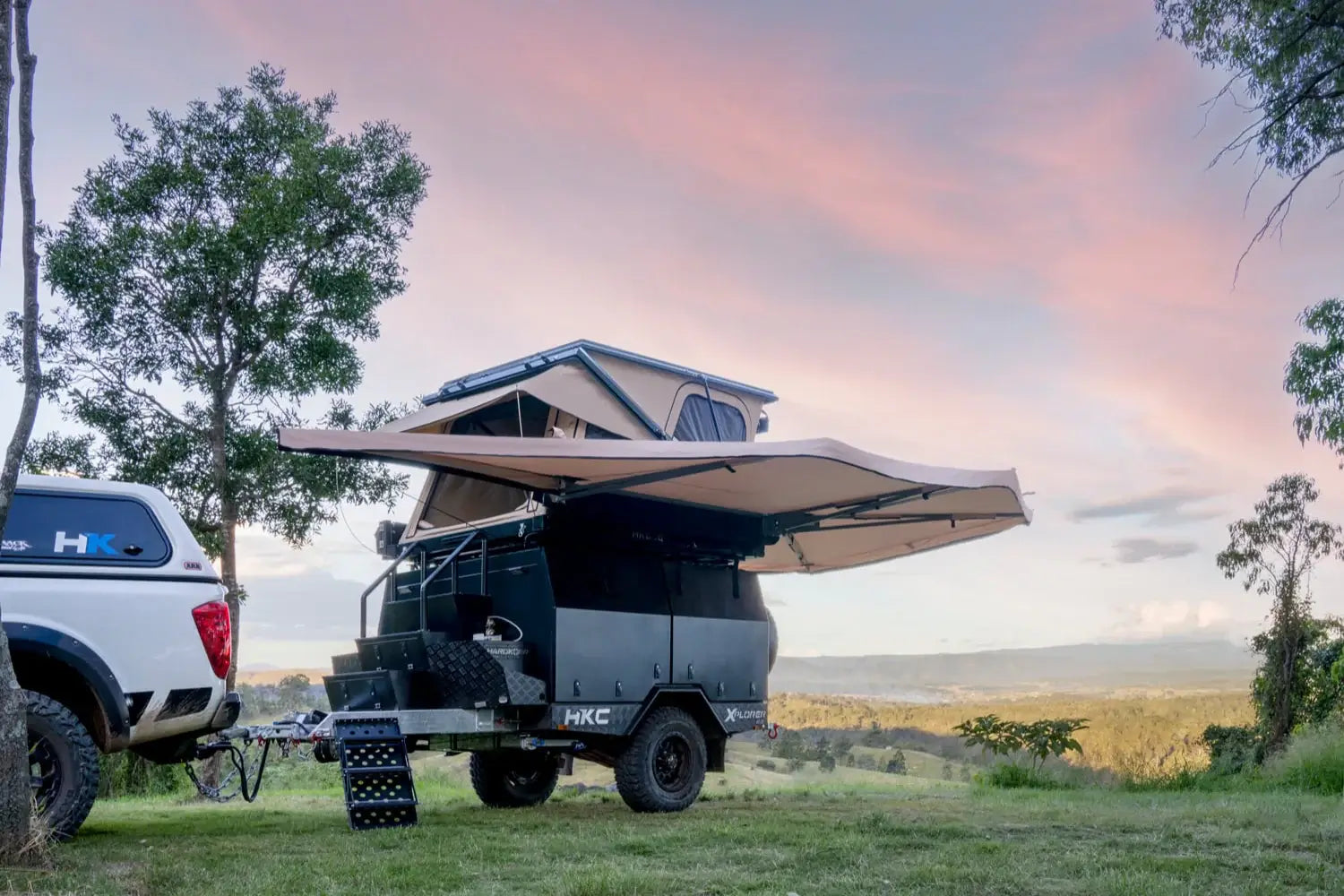

The Xplorer is the most versatile and innovative camper trailer we’ve ever made. With its modular interior fitout, easy-access integrated staircase (patent pending no. 2022241583) and optional intelligently-designed rooftop tent and 270° awning, this camper trailer is an absolute pleasure to use and can be set up or packed down by one person in under five minutes.
It’s also capable of being used as a tradie trailer during the week. The roof can hold up to 350kg of weight, there are integrated tie down points all the way along, and if you’ve fitted our modular camp kitchen or pantry, these can be easily removed to reveal a total of around 3,900L of usable storage. There are slotted dividers to allow you to hang your own equipment or install custom storage/shelving solutions, and the integrated staircase is convenient for accessing your roof load.
AUSTRALIAN DESIGNED AND TESTED.
The Xplorer was proudly designed by us, right here in Australia. In creating the trailer, we focused on four key principles:

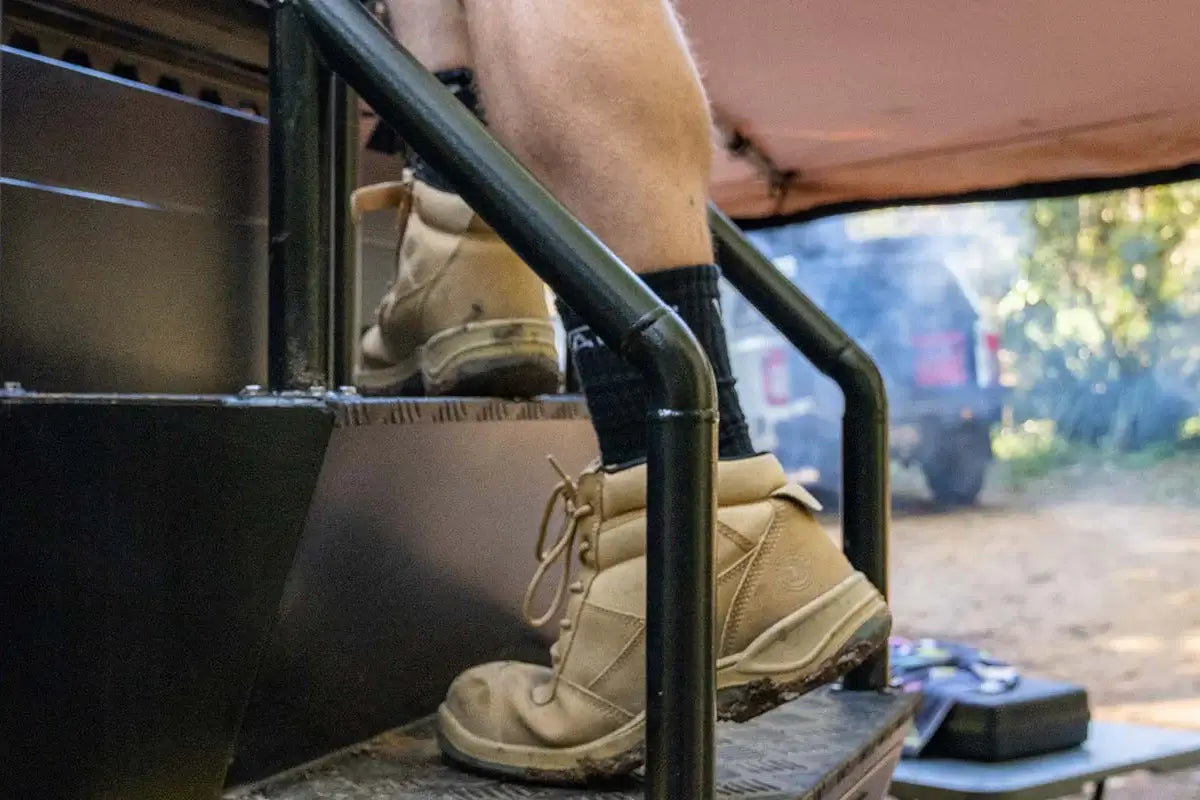

- ACCESSIBILITY: we wanted a roof top camper trailer that was accessible to all, regardless of age or physical condition. The integrated staircase we created is unique amongst roof top camper trailers in Australia; it has been protected by an Australian Registered Design and is the subject of a patent application.
- QUICK SET UP: no one wants to spend ages setting up a camper trailer while everyone else is sitting around the fire, so we were determined to design a trailer that could be fully set up in under 5 minutes by one person.
- STORAGE: there’s no point towing a camper trailer if it can’t fit all of your travelling equipment inside, so we made sure it could fit in everything you’d need to camp for several weeks at a time.
- DURABILITY: we respect the fact that buying a camper trailer is a significant investment for most people, so we made sure it was designed in a way that ensures it will last the distance wherever you took it, and wouldn’t be prone to breaking down while you’re on the road.
The Hardkorr Campers Guarantee
All Hard Korr Campers® products are manufactured using the highest quality materials. We are confident that they are the most durable in the market and will give you many years of reliable service. We stand behind this product with a comprehensive 5-year structural warranty.
Hardkorr Xplorer 2.2 Comparison Table
CONSTRUCTION |
Xplorer Base |
Xplorer 2.2 |
|---|---|---|
| CHASSIS | Hot-dip galvanised steel 150mm x 50mm x 3mm | |
| BODY | 3mm aluminium body, steel front steps | |
| CAMPER HITCH | Premium ALKO 360° 50mm ball | |
| SUSPENSION | Independent with dual big-bore gas shocks | Heavy-duty independent big-bore gas shocks |
| HUB BEARINGS | Heavy-duty | Heavy-duty, 12in |
| PAINT FINISH | Impact-resistant 4-step electrocoating (hammertone finish) | |
| JOCKEY WHEEL | ARK XO 750 | |
SPECIFICATIONS |
Xplorer |
Xplorer 2.2 |
|---|---|---|
| TOTAL LENGTH | 3,900mm | 3,830mm (4,300mm inc. extended drawbar) |
| TOTAL WIDTH | 1,880mm (2,050mm inc. awning/shower tent) | |
| TOTAL HEIGHT | 1,880mm (2,250mm to top of queen tent) | |
| GROUND CLEARANCE | 520mm | 500mm (from water tank) |
| WHEEL TRACK | 1,540mm | |
| DEPARTURE ANGLE | 25.3° | |
| RAMP OVER ANGLE | 59° | |
| TARE WEIGHT (DRY) | 900-1200kg (depending on configuration) | 1,350kg |
| ATM WEIGHT | 1,650kg | 2,200kg |
| BALL WEIGHT | 65-100kg (depending on configuration) | 122kg (140kg as displayed) |
| WATER CAPACITY | 100L | 100L front tank + 70L rear tank |
| WHEELS & TYRES | 265/75/R16 MT (31.6″) | |
| FRIDGE SLIDE | 96L (can be removed to fit upright fridge) | |
| STORAGE | 3,900L (approx) | |
| PLUS new features including 12” electric brakes, upgraded suspension, new shelves, rear recovery points, and repositioned internal layout. | ||
KEY FEATURES:
Standard
Full 150mm x 50mm Chassis
Constructed from hot-dipped galvanised steel for incredible durability
AL-KO 50mm Hitch
360 degree ball coupling designed for off-road use
Impact-Resistant Electrocoated Body
In high-quality hammertone finish
Heavy-Duty Suspension
Fully independent with dual big-bore gas shocks
ARK 750 Off-Road Jockey Wheel
The toughest, most advanced jockey wheel in Australia
12v Water Pump
With isolation valves - keep fresh and grey water separated
Front Shower Point
Easily connect up your shower, wherever you are
Hot Water Plumbing to Sink
Ready for you to connect your portable hot water system
Dust & Water Resistant Doors
With compression locks and automotive weather seals
Fully-Featured 12V Setup
12V & USB outlets, solar regulator, battery monitor

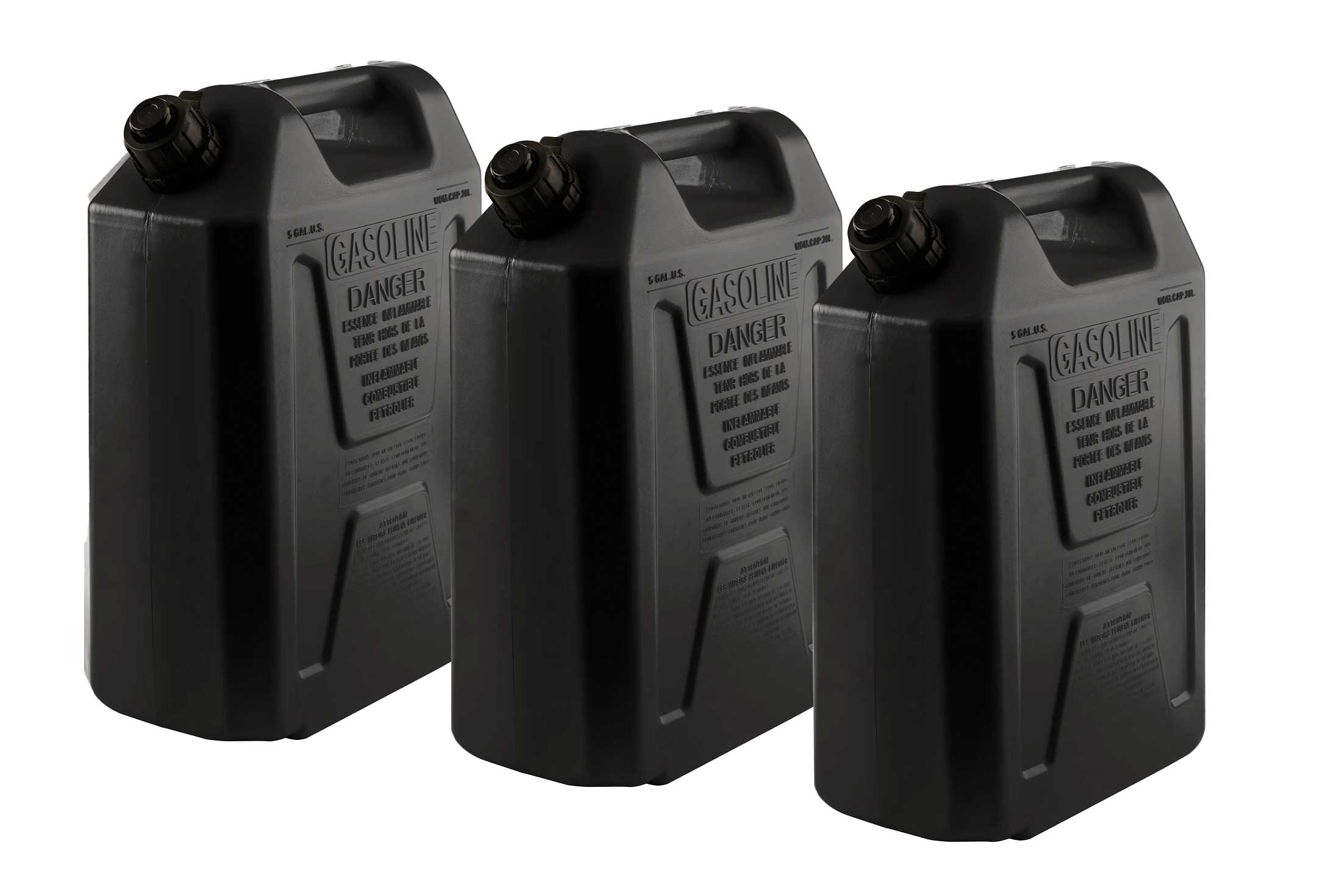

Space for 2 x 20L Jerry Cans
Safely and securely carry extra fuel or water on board

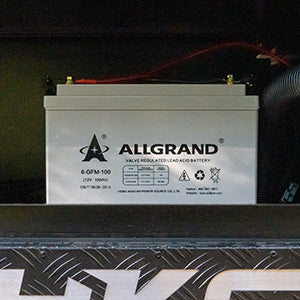

100AH AGM Battery
Power storage to run your electrical setup
16" Steel Wheels
With 265/75/R16 MT tyres for great off-road performance
Optional
Cruisemaster DO35 Drop-On Hitch
2-stage ADR-compliant locking mechanism for unrivalled safety
Extended draw bar
For better manoeuvrability and easier access to the back of the vehicle
Modular Camp Kitchen
With Dometic 2-burner stove, stainless steel sink and taps
Modular Pantry
Large storage space for your dry goods and kitchen equipment

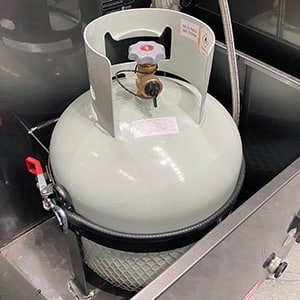

9kg Gas Bottle & Fittings
AGA-certified products installed by authorised gas fitter
4 x Stabiliser Legs
Ensures your trailer remains stable on uneven terrain

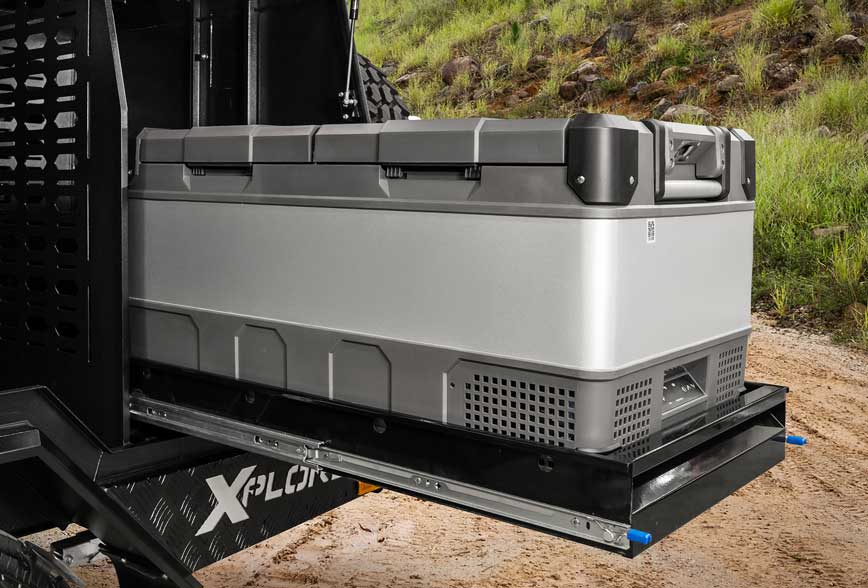

Fridge Slide with Prep Bench
Comes with pull-out prep bench. Large enough to fit a 96L fridge.
Hardkorr Tri-Colour LED Lights
With custom switches inside main power panel

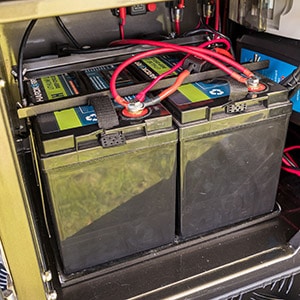

2 x 100AH Lithium Batteries
Upgrade to lithium for ultimate reliability & longevity
Alloy Wheel Upgrade
For a custom look
Hardkorr 270° Free-Standing Awning
Ultimate protection from sun and rain
Dual-Lift Roof Top Tent
Easy setup, integrated lighting and USB, extremely comfortable. Now with 140mm mattress
Tracey Reddacliff –
We have the 2.2 Xplorer – The best campa on the market. The stairs to the rooftop are fantastic and safe. Huge space in the rooftop especially for tall people you don’t feel cramped in like other roof tops. It tows like a dream – you don’t even know it’s there. So much storage space for everything (including your poles and longer items – you will have trouble filling the spaces. Even under the stairs has storage. The area near the pull out kitchen has also so much room, it doesn’t look like it but there is heaps of storage for your food etc. The pull out draw beside the kitchen has ample room for all your saucepans plates, cups etc. There are heaps of lights – everywhere you need them and more. The pull out awning is so quick and easy to set up. The tropical awning is also a bonus for when it rains so you can climb the stairs without getting wet. The shower is also another quick and easy set up. We just love it.
Mahla –
We love our new Xplorer 2.2! Josh was amazing throughout the whole process couldn’t have asked for better service. A dream to tow after towing much heavier vans and such a simple yet highly efficient set up and so much storage. We actually set this up quicker than our previous Jayco hybrid Adventurer and like I said towing it compared to a heavy hybrid is just a dream. Highly recommended if you are looking to go simpler and want a lighter tow! Thank you Josh & the team!! Very happy customers!
Tammie Thornton –
I’m in Cairns and I own the Xplorer 2.2, I absolutely love it. I’m a single Mum with two young boys and we all sleep upstairs in the roof top tent with heaps of room to spare. I spent 5 years looking for the right camper and I bought this trailer for the compact size, the storage and the stairs. I’m able to set up and pack up by myself and I’m currently planning a trip to Kakadu in Sept 2025. Do yourself a favour and check out the Hard Korr Explorer 2.2 at their Gold Coast showroom or at a camping show near you. Thanks Josh, Luke and the team for your help and guidance.
