Bushmaster HKC-4000 X

Bushmaster HKC-4000 X

SLEEPS

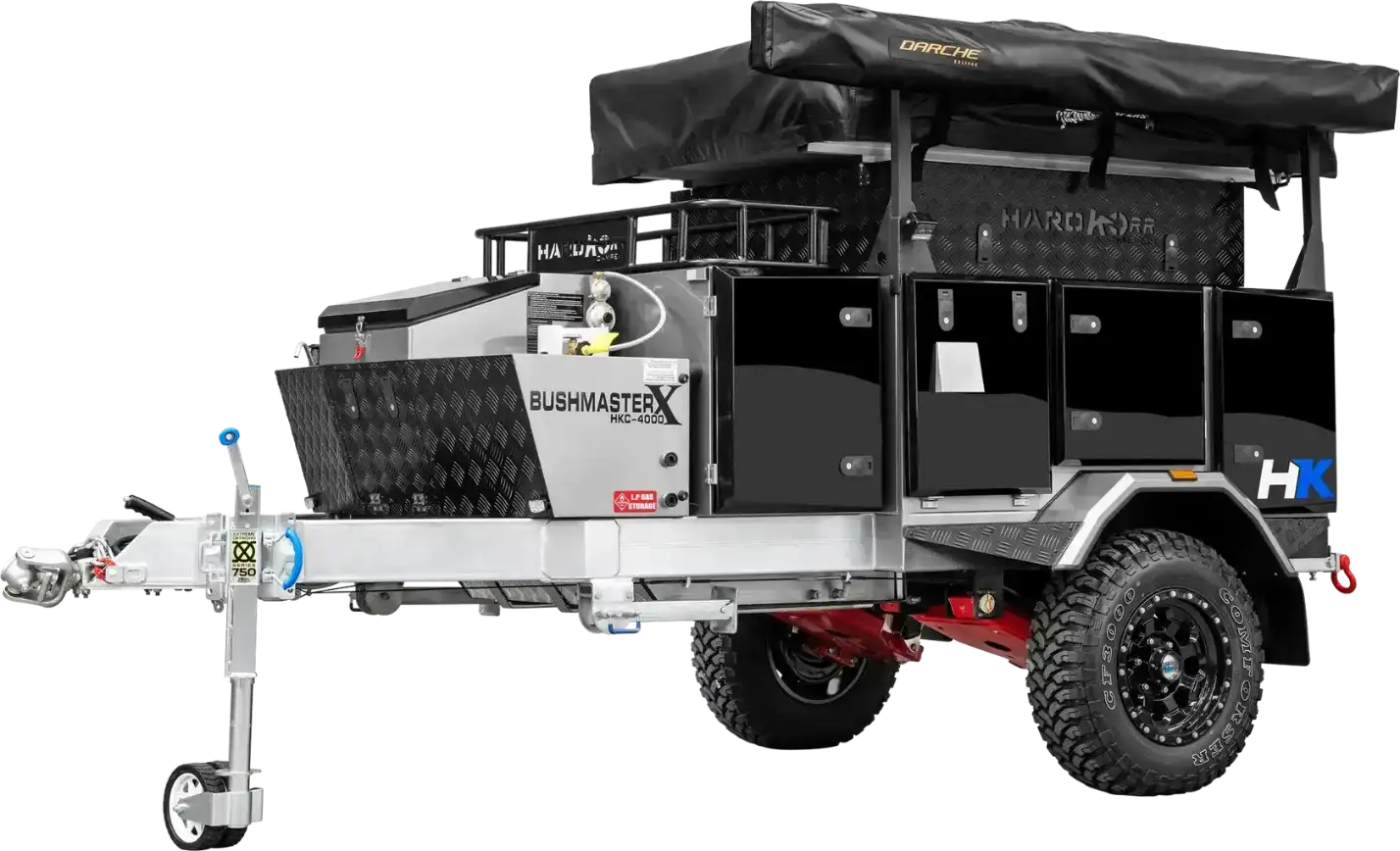

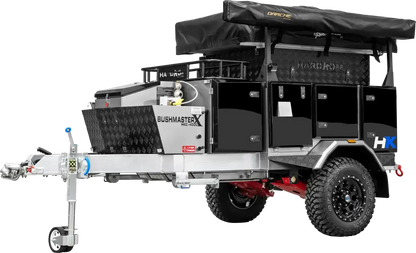

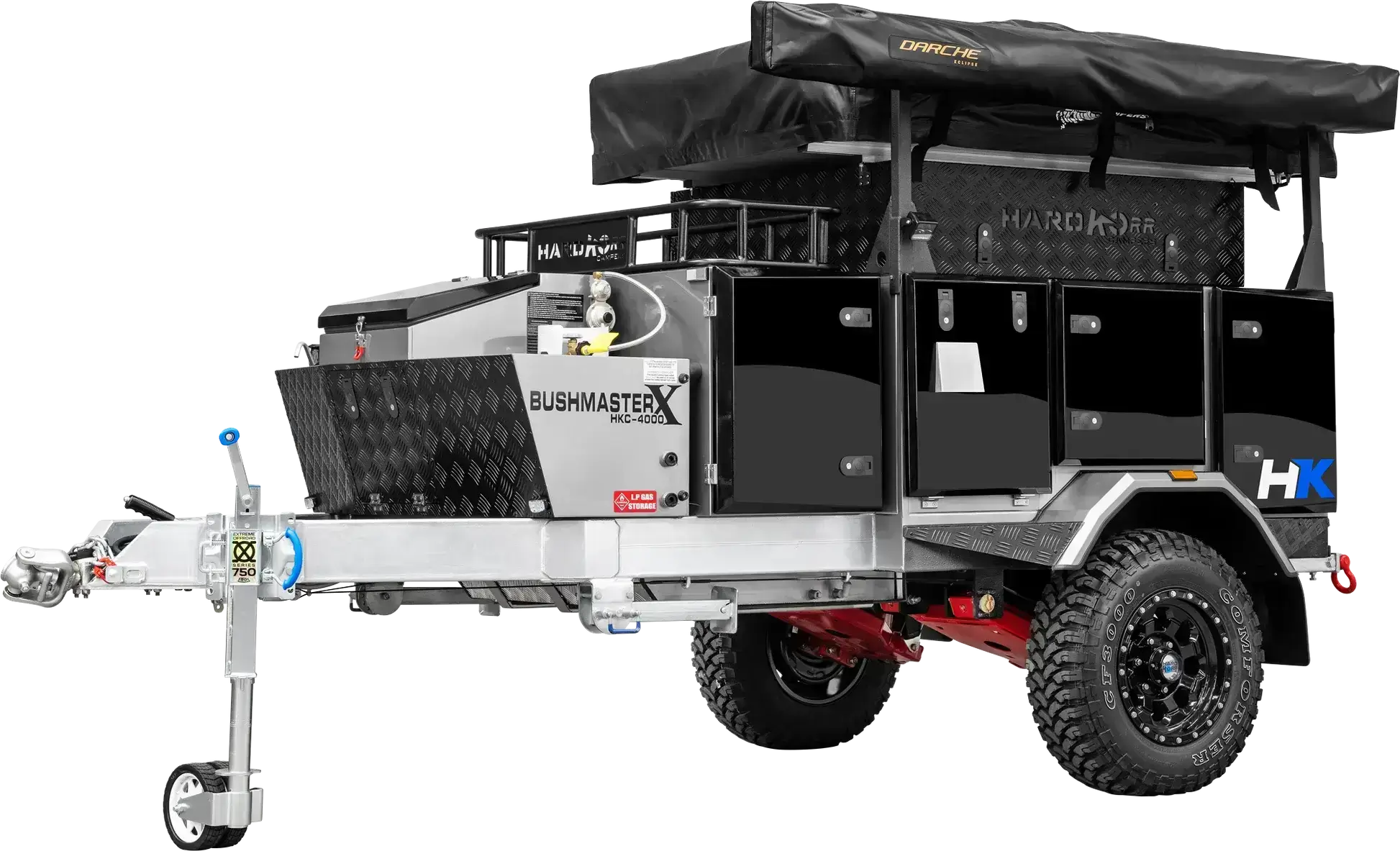

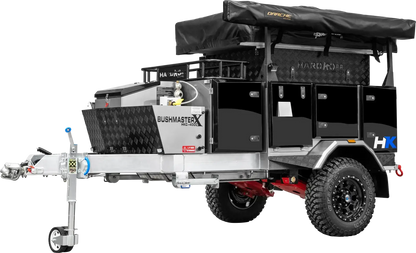

The Bushmaster 4000-X Series is a highly capable adventure camper which is tough, comfortable and easy to tow. This mid-size camper trailer is ideal for couples or young families, and has been engineered for storage space maximisation and quick setup.

View full details

Key features

  • AL-KO 50mm Hitch

    360 degree ball coupling designed for off-road use

    Full 150mm x 50mm Chassis

    Constructed from hot-dipped galvanised steel for incredible durability

    Heavy-Duty Suspension

    Fully independent with dual big-bore gas shocks

    ARK 750 Off-Road Jockey Wheel

    The toughest, most advanced jockey wheel in Australia

    Front Shower Point

    Easily connect up your shower, wherever you are

    12v Water Pump

    12v Water Pump with Isolation valves that separate front and rear water tanks.

    Hot Water Plumbing to Sink

    Ready for you to connect your portable hot water system

    Dust & Water Resistant Doors

    With compression locks and automotive weather seals

    4 x Stabiliser Legs

    Ensures your trailer remains stable on uneven terrain

    Space for 2 x 20L Jerry Cans

    Safely and securely carry extra fuel or water on board

    2-Pac Paint (3 Coats)

    High-quality finish for ultimate durability and shine

Specifications & Layout

Construction

  • CHASSIS Hot-dip galvanised steel 150mm x 50mm x 3mm
  • BODY Aluminium
  • CAMPER HITCH Premium ALKO 360° 50mm ball
  • SUSPENSION Heavy-duty independent big-bore gas shocks
  • HUB BEARINGS Heavy-duty, PCD 6×139.7
  • PAINT FINISH Impact-resistant 4-step electrocoating (hammertone finish)
  • JOCKEY WHEEL ARK XO 750

Specifications

  • TOTAL LENGTH 3,830mm (4,300mm inc. extended drawbar)
  • TOTAL WIDTH 1,880mm
  • TOTAL HEIGHT 1,880mm
  • GROUND CLEARANCE 500mm (from water tank)
  • WHEEL TRACK 1,540mm
  • DEPARTURE ANGLE 25.3°
  • RAMP OVER ANGLE 59°
  • TARE WEIGHT (DRY) 1,350kg
  • ATM WEIGHT 2,200kg
  • BALL WEIGHT 122kg (140kg as displayed)
  • WATER CAPACITY 100L front tank + 70L rear tank
  • WHEELS & TYRES 265/75/R16 MT (31.6")
  • FRIDGE SLIDE 96L (can be removed to fit upright fridge)
  • STORAGE 3,900L (approx)

Brochures and Manuals

AUSTRALIAN DESIGNED AND TESTED

The Xplorer was proudly designed by us, right here in Australia. In creating the trailer, we focused on four key principles:

  1. ACCESSIBILITY: we wanted a roof top camper trailer that was accessible to all, regardless of age or physical condition. The integrated staircase we created is unique amongst roof top camper trailers in Australia; it has been protected by an Australian Registered Design and is the subject of a patent application.
  2. QUICK SET UP: no one wants to spend ages setting up a camper trailer while everyone else is sitting around the fire, so we were determined to design a trailer that could be fully set up in under 5 minutes by one person.
  3. STORAGE: there’s no point towing a camper trailer if it can’t fit all of your travelling equipment inside, so we made sure it could fit in everything you’d need to camp for several weeks at a time.
  4. DURABILITY: we respect the fact that buying a camper trailer is a significant investment for most people, so we made sure it was designed in a way that ensures it will last the distance wherever you took it, and wouldn’t be prone to breaking down while you’re on the road.
